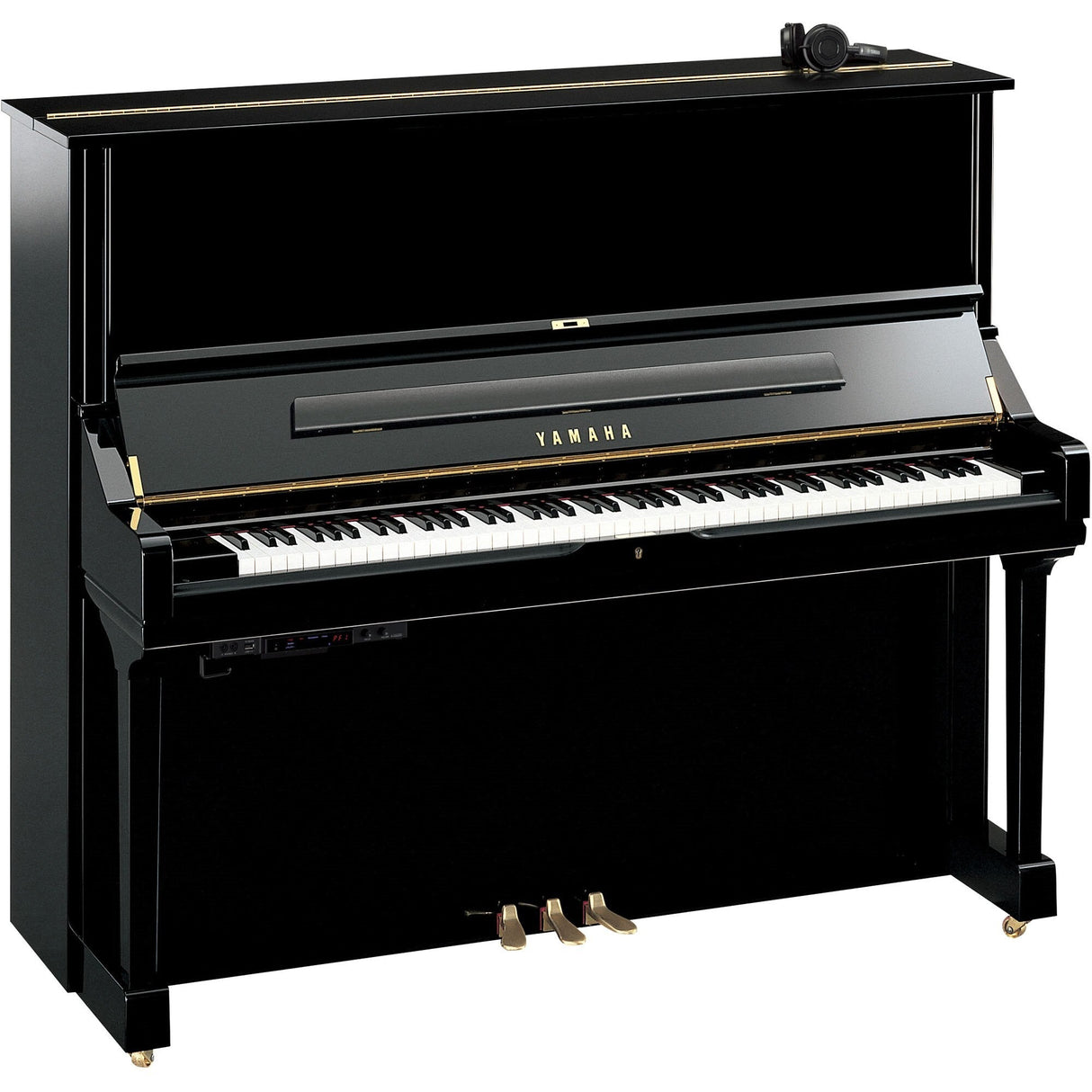

Yamaha U3 (Silent Piano)

• Acoustic Realism and Performance: At its core, the Yamaha U3 SH3 Silent Piano remains a genuine acoustic instrument, celebrated for its rich sound quality and crafted design. The feel and response of a traditional Yamaha piano are preserved, prioritizing the player's expressive control.
• SILENT Piano™ Technology: Equipped with an advanced silencing mechanism, the Yamaha U3 SH3 allows players to switch to SILENT Mode effortlessly. This feature is ideal for practicing privately, using headphones to enjoy realistic piano sounds without disturbing others.
• Bluetooth® MIDI and Smart Pianist App Compatibility: Connectivity options enhance the U3 SH3's functionality. With Bluetooth® MIDI, users can connect wirelessly to the Smart Pianist app on smart devices for intuitive control and access to a range of features.
• Articulation Sensor System: Yamaha's newly developed Articulation Sensor System captures the subtle nuances of the player's touch, translating keystrokes into precise acoustic and digital responses without affecting the natural feel of the piano.
• Grand Expression Modeling: This feature brings digital replication to a new level, providing real-time audio feedback that reflects the force and acceleration of keystrokes, allowing for expression that rivals the acoustic experience.
• Virtual Resonance Modeling (VRM): The VRM technology recreates the sympathetic resonance that is characteristic of grand pianos, offering players a remarkably authentic and immersive sound experience—especially in Quiet Mode.
• Binaural Sampling: For those using headphones in SILENT Mode, binaural sampling technology provides a sound so realistic it simulates the experience of playing a grand piano, adding to the immersive quality of practice sessions.
• Voices of Yamaha and Bösendorfer Grands: The U3 SH3 Silent Piano contains meticulously sampled sounds of prestigious concert grand pianos, like Yamaha CFX and Bösendorfer Imperial, allowing players to experience the distinctive attributes and tonal character of each.
• Quick Escape System: This feature ensures that the grand piano action is consistently balanced and responsive in all playing modes, giving players a uniform and satisfying tactile experience whether the piano is silent or not.
• Rhythmic Accompaniment Options: The piano offers 20 built-in rhythm patterns that include drum and bass accompaniments, providing a more engaging practice and performance environment.
• Built-in and USB Recording Functions: Players can easily record and review their performances with the built-in recording option or save their music on a USB drive in WAV format for later playback or CD burning.
• Volume Control and Acoustic Resonance: Despite its digital features, the U3 SH3 maintains its acoustic integrity, allowing for volume adjustments that do not compromise the piano's tonal richness—a fusion of muting function with high-quality piano performance.

Size/Weight

Dimensions

• Width: 153 cm (60 1/4")
• Height: 131 cm (51 1/2")
• Depth: 65 cm (25 1/2")
• Weight: 250 kg (550 lb)

Control Interface

Keyboard

• Key Surfaces - White: Acrylic resin
• Key Surfaces - Black: Phenolic resin
• Hammer
• Type: U Series Special

Pedal

• Type: Damper/Silencing pedal/Soft

Design/Architecture Detail

Caster

• Type: Double Caster

Cabinet

Lid/Fallboard Locks: Yes

• Soft-Close Fallboard: Yes

Sensor System

• Key Sensors: Non-contact continuous detection electromagnetic inductive sensor
• Hammer Sensors: -
• Damper Pedal: Continuous detection sensor
• Sostenuto Pedal: -
• Soft/Shift Pedal: On/Off detection sensor

Silencing System

• Mechanism: Hammer shank stopper operated by silencing lever
• Action: -

Voices

• Tone Generation
• Piano Sound: Yamaha CFX, Bösendorfer Imperial
• Forte Piano: Yes
• Binaural Sampling: Yes (Yamaha CFX, Bösendorfer Imperial)
• Virtual Resonance Modeling (VRM): Yes
• Grand Expression Modeling: Yes
• Key-off Samples: Yes
• Smooth Release: Yes
• Polyphony (max.): 256
• Preset
• Number of Voices: 25
• Voices for Song Playback: 480 XG Voices + 12 Drum/SFX Kits

Effects

• Types
• Reverb: Yes
• Brilliance: Yes
• Stereophonic Optimizer: Yes (piano Voices other than “CFX Grand” and “Bösendorfer”)

Songs (MIDI)

• Preset
• Number of Preset Songs: 25 Voice Demo Songs, 50 Classics
• Recording
• Number of Songs: 10
• Number of Tracks: 2
• Data Capacity(max.): approx. 500 KB/Song
• Format
• Playback: SMF (Format 0, Format 1)
• Recording: SMF (Format 0)

Recording/Playback (Audio)

• Recording Time (max.): 80 minutes/Song
• Format
• Playback: WAV (44.1 kHz, 16 bit, stereo)
• Recording: WAV (44.1 kHz, 16 bit, stereo)

Functions

• Rhythm Patterns: 20
• Overall Controls
• Metronome: Yes
• Tempo Range: 5 – 500
• Transpose: -12 – 0 – +12
• Tuning: 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)

Control Interface

• Display: 7-Seg
• Bluetooth: Yes (Audio/MIDI) *May not have this functionality depending on your area. Check with your Yamaha dealer.

Storage and Connectivity

• Internal Memory: approx. 1.3 MB
• External Drives: USB flash drive
• Connectivity
• Headphones: Stereo mini jack (x2)
• MIDI: IN/OUT
• AUX IN: Stereo mini jack
• AUX OUT: [L/L+R][R] (Standard phone jack)
• USB TO DEVICE: Yes
• USB TO HOST: Yes

Power Supply

• AC Adaptor: PA-300C (or an equivalent recommended by Yamaha)
• Power Consumption: 8 W (When using PA-300C AC adaptor)
• Auto Power Off: Yes

Accessories

• Included Accessories: AC adaptor*, power cord*, headphones, headphone hanger, attachment screws for headphone hanger, “50 Classical Music Masterpieces” music book, Owner’s Manual *May not be included depending on your area. Check with your Yamaha dealer.
• Separately Sold Accessories: USB wireless LAN adaptor (UD-WL01) *May not be available depending on your area.

• Bench: Please check with the store for various model availability.
• Headphones: HPH-150
• Music Rest: Included with your piano.
• Power Adapter: Specific model details available upon purchase.
• Music Book: "50 Classical Music Masterpieces" - a collection of timeless piano classics.
• LAN Adapter: UD-WL01 Wireless LAN Adaptor for easy connectivity.
• Headphone Hanger: Keep your HPH-150 Headphones within reach.
• Key Cover: Preserve and protect the keys of your piano.
• Owner's Manual: A comprehensive guide to your piano's features and care.
• 5-Year Warranty for Total Assurance: Your Yamaha piano electronics are guaranteed against material and craftsmanship defects for five years from your purchase date.
• 10-Year Warranty: We provide a decade-long guarantee for the piano, assuring you of its high quality and longevity.
