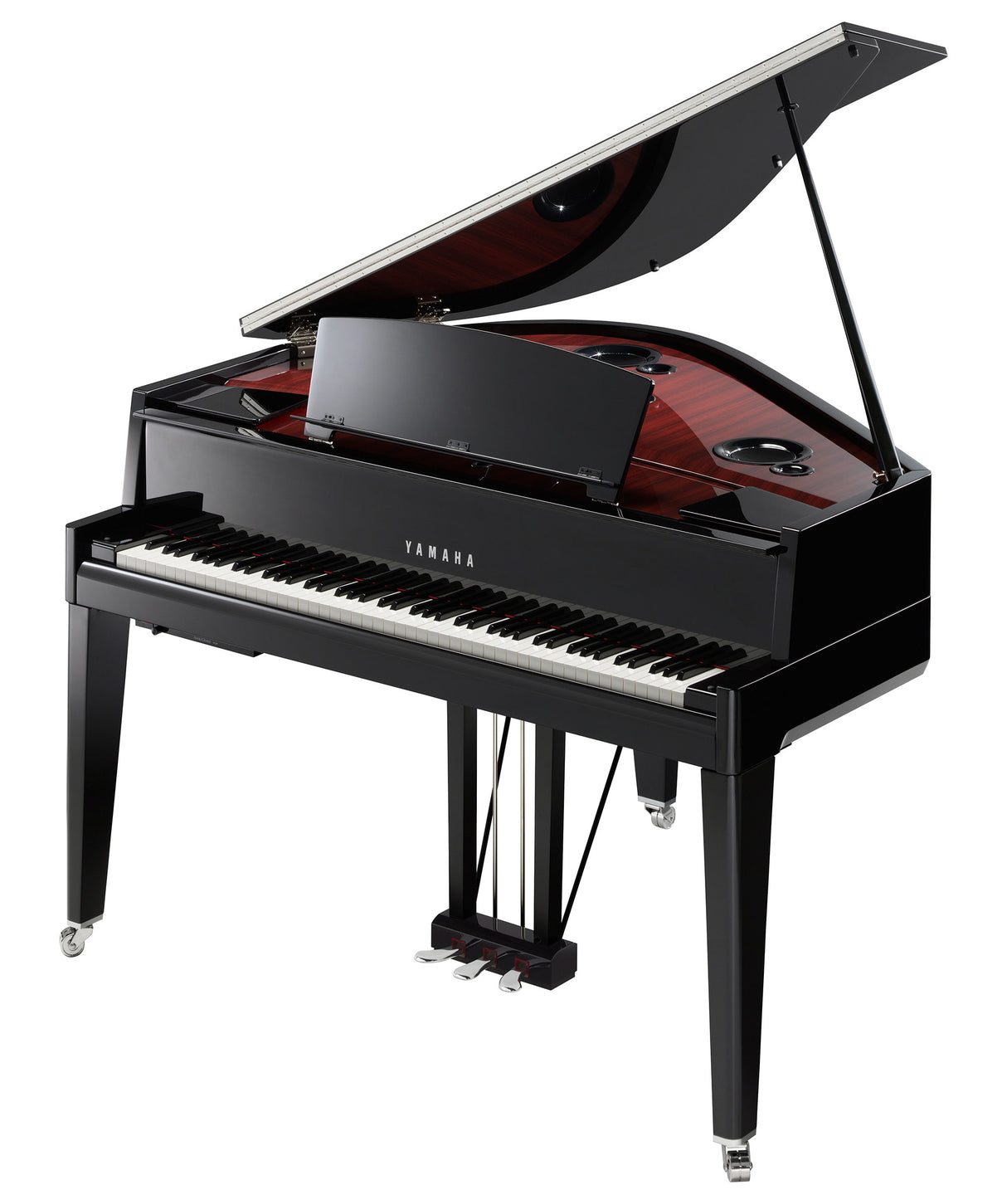

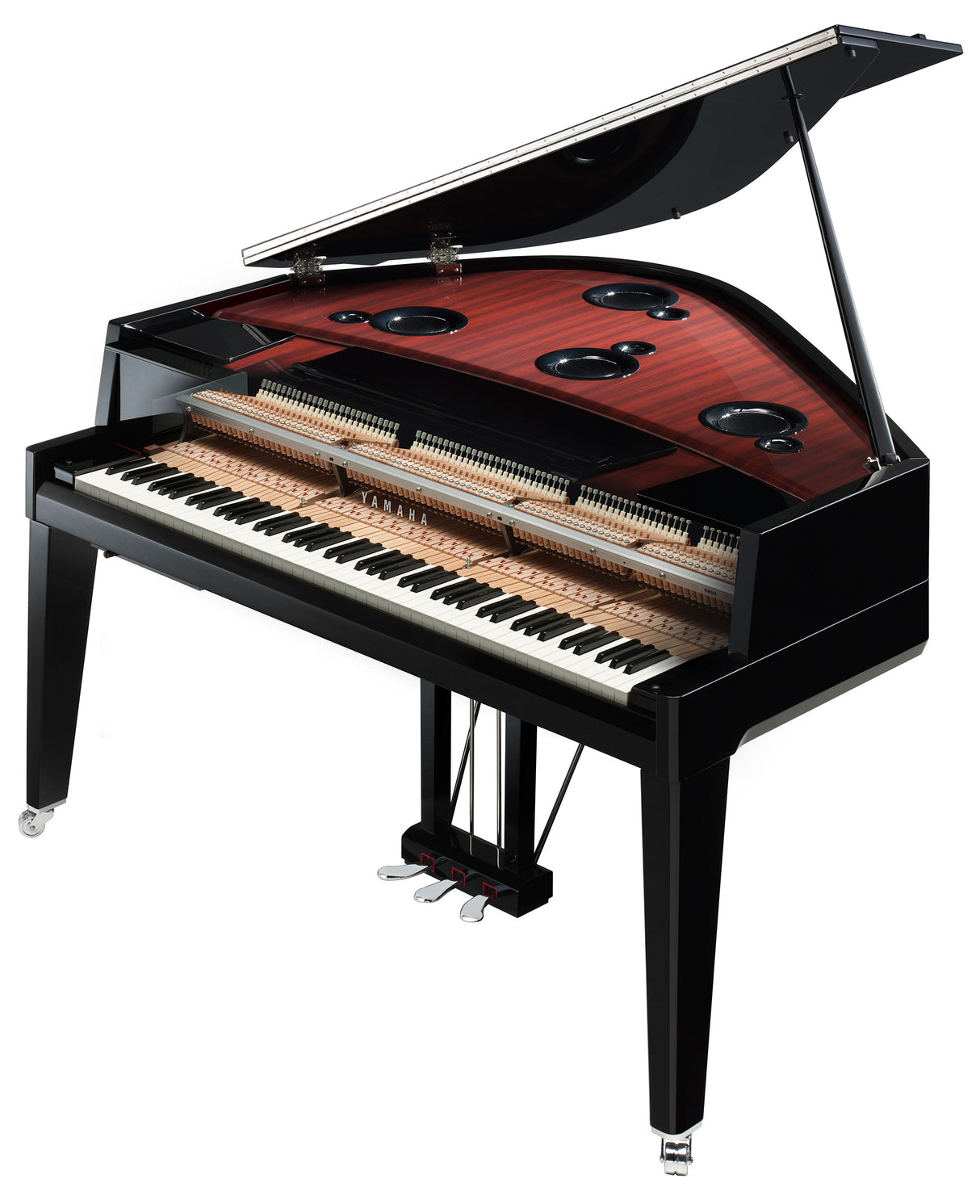

Yamaha Avantgrand N3x (Hybrid Piano)

• Specialized Grand Piano Action with Ivorite Keytops: The AvantGrand N3X boasts an authentic grand piano action that contributes significantly to the playing experience. The Ivorite keytops replicate the tactile sensation of natural ivory, giving pianists a comfortable and realistic touch.
• CFX and Bösendorfer Imperial Grand Piano Samples: With the simple press of a button, players can switch between the distinctive tones of two world-class concert grand pianos—the powerful Yamaha CFX and the sonorous Bösendorfer Imperial—providing incredible versatility for performance and practice.
• 4-point Spatial Acoustic Sampling Technology: This advanced sampling approach involves capturing the grand piano sound from four different locations, leading to richer and more authentic acoustic reproductions and an immersive sound experience.

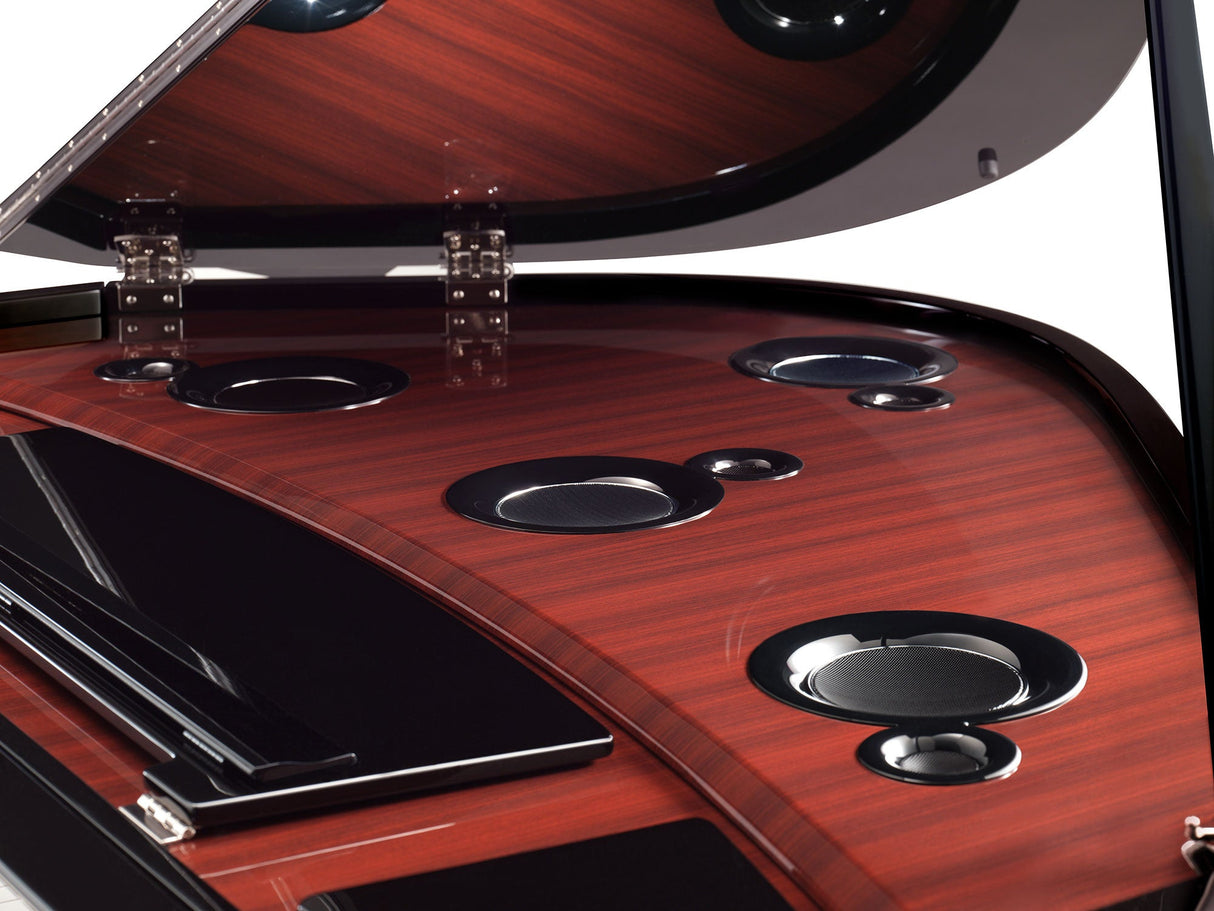

• 4ch Spatial Acoustic Speaker System: The N3X's speaker system is meticulously aligned to the recording positions of the source piano, creating a realistic and enveloping sound that faithfully reproduces the acoustic original piano's resonance.
• Virtual Resonance Modeling (VRM): VRM captures the sympathetic resonance of an acoustic piano by considering the complex interplay of the strings based on the notes being played, resulting in a deep and rich tonal complexity that mirrors the acoustic piano experience.
• Binaural Sampling for Headphone Use: The N3X employs binaural recording methods for its headphone output, providing an incredibly natural and immersive hearing experience that re-creates the sensation of playing a concert grand piano.
• Soundboard Resonator: This feature mimics the natural buildup of sound resonance in an acoustic piano, ensuring that the upper key range is as authentic and nuanced as possible.
• Tactile Response System (TRS): The AvantGrand N3X's TRS technology enhances the physical connection with the piano by reproducing the vibrations typically felt from an acoustic piano through the keyboard and pedals, giving the player a more realistic and connected feeling to their playing.
• Specialized Grand Piano Pedal System: The N3X features a pedal system that accurately reproduces the varying tactile feedback experienced when engaging the pedals of a grand piano, allowing for more expressive pedaling and nuanced performances.
• Smart Pianist App Compatibility: This app provides a user-friendly graphic interface and additional features for the piano, facilitating a richer interaction between the player and the instrument.
• USB Audio Recording and Playback: Performances can be recorded directly onto a USB flash drive in audio format for easy sharing and playback, turning the hybrid piano into a convenient recording studio.
• XLR Balanced Audio Outputs: Professional-grade XLR outputs offer high-quality audio output for connection to amplification systems or mixing consoles, ideal for studio or live settings.

Color/Finish

Cabinet

• Color: Polished Ebony
• Finish: Polished

Size/Weight

Dimensions

• Width: 1,481 mm (58-5/16")
• Height: 1,014 mm (39-15/16") Lid up : 1,734 mm (68-1/4")
• Depth: 1,195 mm (47-1/16")

Weight

• Weight: 199 kg (438 lb, 12 oz)

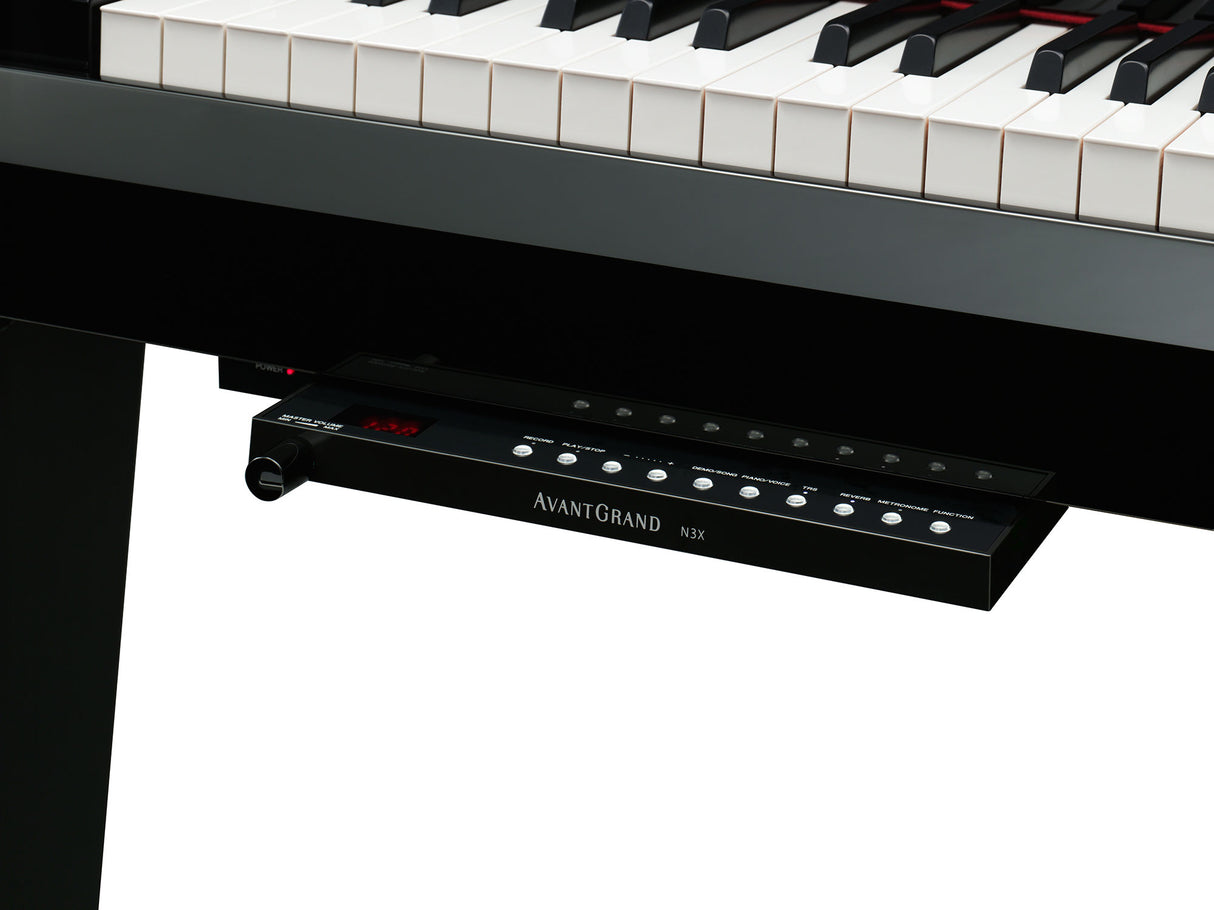

Control Interface

Keyboard

• Number of Keys: 88
• Key Surfaces - White: Ivorite®
• Touch Sensitivity: Hard/Medium/Soft/Fixed
• Keyboard Action: Specialized Grand Piano Action
• Tactile Response System (TRS): Yes

Pedal

• Type: Specialized Grand Piano Pedal
• Number of Pedals: 3
• Half Pedal: Yes
• Functions: Damper (with half-pedal effect), Sostenuto, Soft

Sensor/Driver

• Hammer Sensors: Non-contact optical fiber
• Key Sensors: Non-contact optical fiber

Cabinet

• Key Cover: Soft-Close Fallboard: Yes
• Music Rest: Yes

Voices

Tone Generation

• Piano Sound: Spatial Acoustic Sampling
• Binaural Sampling: Yes (CFX Grand Voice only)
• Key-off Samples: Yes
• Smooth Release: Yes
• Virtual Resonance Modeling (VRM): Yes
• Polyphony: Number of Polyphony (Max.): 256
• Preset: Number of Voices: 10

Effects

• Reverb: Yes
• Brilliance: 5
• Intelligent Acoustic Control (IAC): Yes
• Stereophonic Optimizer: Yes

Songs

Preset

• Number of Preset Songs: 10 preset songs, 10 voice demo songs

Recording

• Number of Songs: 10
• Number of Tracks: 1
• Data Capacity: approx. 550 KB/Song
• Recording Function: Yes

Compatible Data Format

• Playback: SMF (Format 0, 1)
• Recording: SMF (Format 0)

Functions

• Metronome: Yes
• Tempo Range: 5 - 500
• Transpose: -6 - 0 - +6
• Tuning: 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)
• Scale Type: 7 types

Audio Recorder/Player

• Recording Time (max.): 80 minutes/Song
• Recording: WAV (44.1 kHz, 16 bit, stereo)
• Playback: WAV (44.1 kHz, 16 bit, stereo)

Storage and Connectivity

Storage

• Internal Memory: approx. 1.4 MB
• External Drives: USB Flash Drive

Connectivity

• Headphones: Standard stereo phone jack (x 2)
• MIDI: In/Out
• AUX IN: Stereo Mini
• AUX OUT: [L/L+R] [R] (Standard stereo phone jack)
• OUTPUT: [L] [R] (XLR jack, balanced)
• USB TO DEVICE: Yes
• USB TO HOST: Yes

Power Supply

• Auto Power Off: Yes
• Power Supply: AC Inlet

Sound System

• Spatial Acoustic Speaker System: Yes
• Soundboard Resonator: Yes
• Amplifiers: 80 W x 2 + 45 W x 4 + 35 W x 5 + 25 W x 4
• Speakers: (16 cm + 13 cm + 2.5 cm) x 4

• Bench: A matching piano bench is provided for comfortable seating while playing.
• Key Cover: A quality felt key cover to protect your piano's keys from dust and accidental spills.
• Owner's Manual: Learn about the features and care of your instrument in this comprehensive manual.
• 5-Year Warranty for Total Assurance: Your Yamaha piano comes with a rock-solid guarantee against material and craftsmanship defects, valid for five full years after your purchase date.
